Washing machine electronic board

Original price was: ₨ 5,500.Current price is: ₨ 5,100.

+ Free Shipping

Availability: 19 in stock

Add to Wishlist
Add to Wishlist

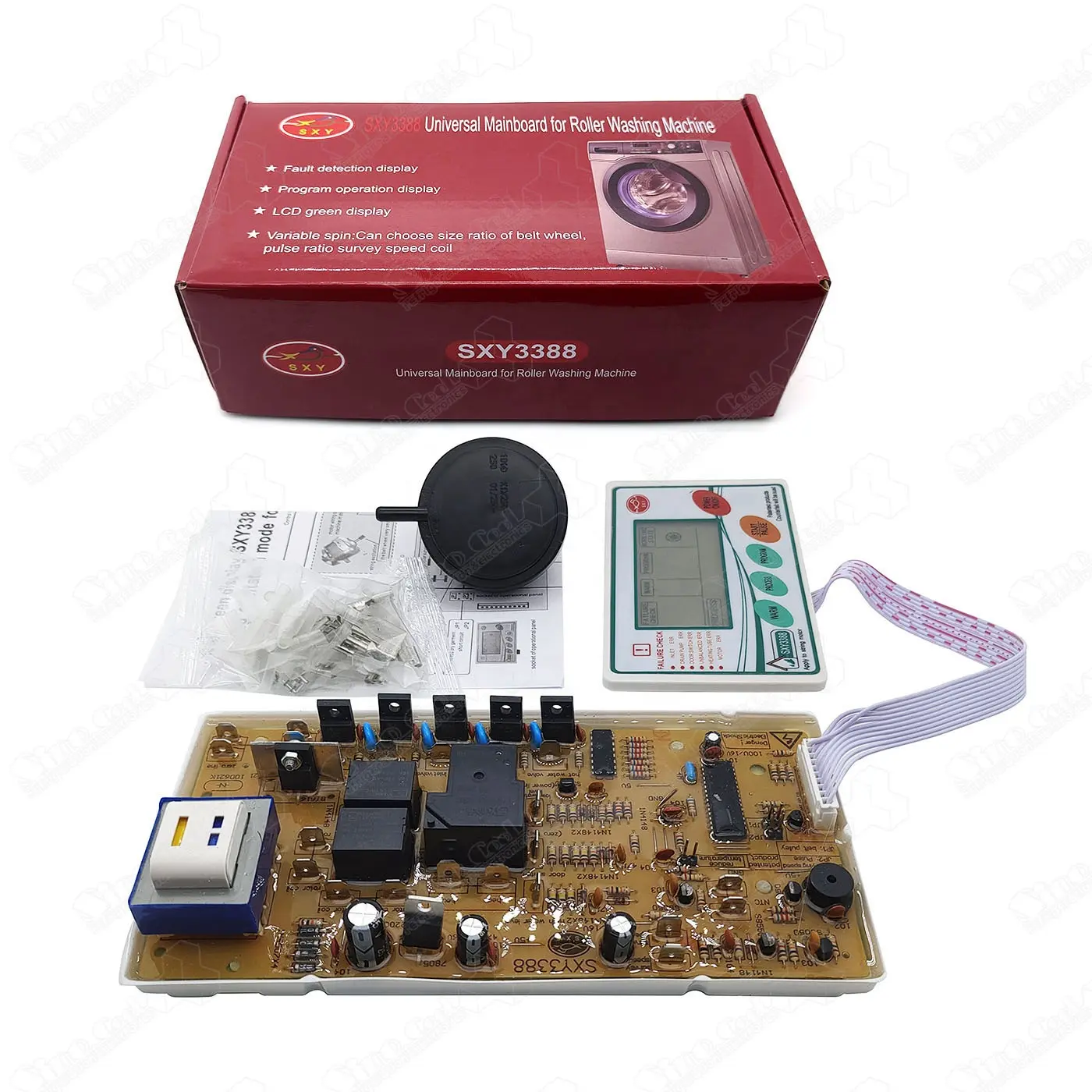

SXY-3388 SXY3388 universal washing machine electronic board

Features:

1) Can done as “washing”, “rinsing”, “dry”, and spin four multiple program
2) “Standard“, and “memory” way
3) Alarming when unbalance
4) When “washing” program , water adding available
5) Alarming when incoming or out water out of limited
6) When program finished, will power off automatically
7) Cover will be protect when “dry” program
Remark:
A Please check the motor, water inlet valve and drain valve of the washing machine are well before installation Otherwise the computer board will be burned. Inlet valve should be more than 4K and also the drain valve should be over 100 Ω, if not it is the defect items and also should be replaced.
B Un-dry clothes and no spin occurs often. Check the door switch and plugs is well connected .
C For Electronic water level washing machine. Use the original or same frequency water level device or it will occur unlimited water flow and also the clothes will not be dried.
D When there is a trouble alarm of computer board, It is usually the problem of peripheral circuit. Please refer to the user
manual of washing machine for the failure code.
Product name
Washing Machine Control Board
Model
SXY3388
Voltage
110V-240V
Surface Finishing
HASL
Min. Hole Size
0.2mm
Board thickness
240mi
